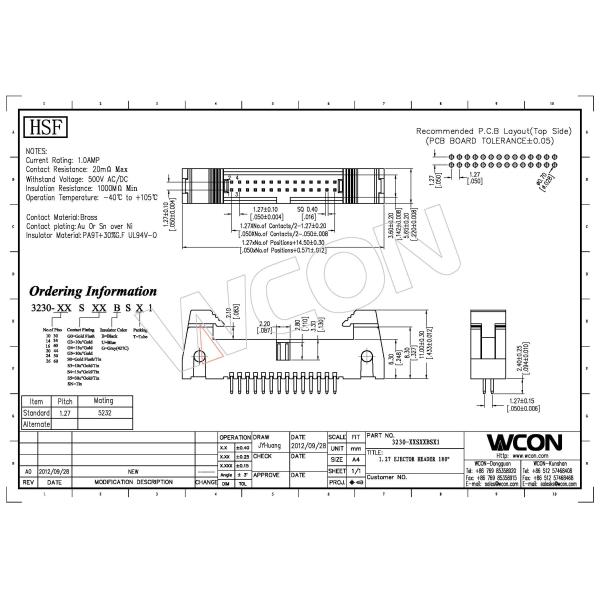

1.27mm pitch latch header connector 10 - 100 pins Au or Sn over Ni brass

Product Categories

WCON ELECTRONICS ( GUANGDONG) CO., LTD

Contact Now

Name: 127mm pitch latch header connector 10 100 pins Au or Sn over Ni brass
Brand: WCON
Price: 1 USD

Brand Name : WCON

Model Number : 3230-XXSXXBSX1

Certification : UL/SGS/ROHS/QC/EHS

Place of Origin : Dongguan, Guangdong, China.

MOQ : 1000 pcs

Price : Negotiable. It depends on the customers' requests.

Payment Terms : T/T

Supply Ability : 800000 kpcs

Delivery Time : 15-25 Days

Packaging Details : Tube/Tube + Cap/Tape + Reel

Contact Material : Brass

Contact Plating : Gold on Contact, Tin on Tail

Insulator Material : 3230 PA9T + 33% GF UL94V-0/3231 LCP + 30% GF UL94V-0

No of Pins : 10/14/16/20/24/26/30/34/40/44/50/60/80/100 Pins

Color : Black

Pitch : 1.27 mm

Key Words : 1.27mm pitch latch header connector 10 - 100 pins Au or Sn over Ni brass

Contact Now

1.27mm pitch latch header connector 10 - 100 pins Au or Sn over Ni brass

Products Issues	Products Descriptions
Products Characteristics	The ejector header connector is one of many connectors. It's a European style connector, which is a variety of connectors classified according to the actual use. It is named after its resemblance to the shape of a cow's horn. The ejector header connector is a very simple internal wiring device to use.
Products Specifications	Current Rating	1.0AMP
	Contact Resistance	20 Milliohm Max
	Insulation Resistance	1000 Milliohm Min
	Withstand Voltage	500V AC/Minute
	Operation Temperature	-40 ℃ to + 105 ℃
	Contact Material	Brass
	Contact Plating	Au or Sn over Ni
	Insulator Material	3230 PA9T + 33% GF UL94V-0
	SMT Lead Coplanarity	0.1mm Max 02-40P
		0.12mm Max 40-60P
		0.15mm Max Above 60P
Products Applications	Ejector header connectors are mainly used in automotive, industrial, transportation, military/aerospace, medical equipment, instrumentation, etc.

1.27mm pitch latch header connector 10 - 100 pins Au or Sn over Ni brass
